Large Format Fringe Inspection Hi-Rez
Measure:
Capture quantitative, unit-based heightmaps across up to 600x600 mm build plates, detecting powder bed and melted layer surface deviations.
Identify:
Pinpoint powder bed and printed layer anomalies as they occur, with accuracy that supports process validation and production-scale quality assurance.
Improve:
The only way to improve is to start measuring. Use Fringe Inspection data to perform root cause analysis, optimize printing strategy, and increase overall high-quality yield via quality control.
Log in to view pricing and add to cart.
Pairs well with
Large Format Fringe Inspection Hi-Rez
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product Details
Description
The Large Format Fringe Inspection™ Hi-Rez system extends Phase3D’s structured light inspection technology to high-precision, data-driven R&D environments, offering unparalleled resolution and traceability for large-format metal additive manufacturing. Designed specifically for high resolution measurements, Large Format Fringe Inspection™ Hi-Rez increases measurement resolution to pixel sizes as small as 54µm for 450x450mm build plates.
Fringe Inspection™ Hi-Rez delivers quantitative, NIST-traceable data for real-time monitoring of layer height, deposition consistency, and melt surface quality, critical for understanding and qualifying complex AM processes. Like all Phase3D systems, it installs externally via existing ports, with no invasive machine modifications required.
The Large Format Fringe Inspection™ Hi-Rez system includes:

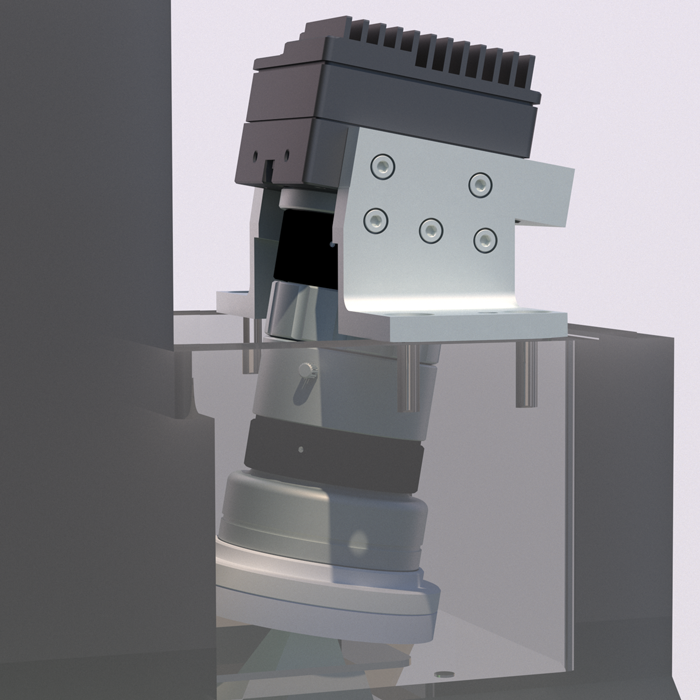

- 1× Ultra High-Resolution Camera Assembly

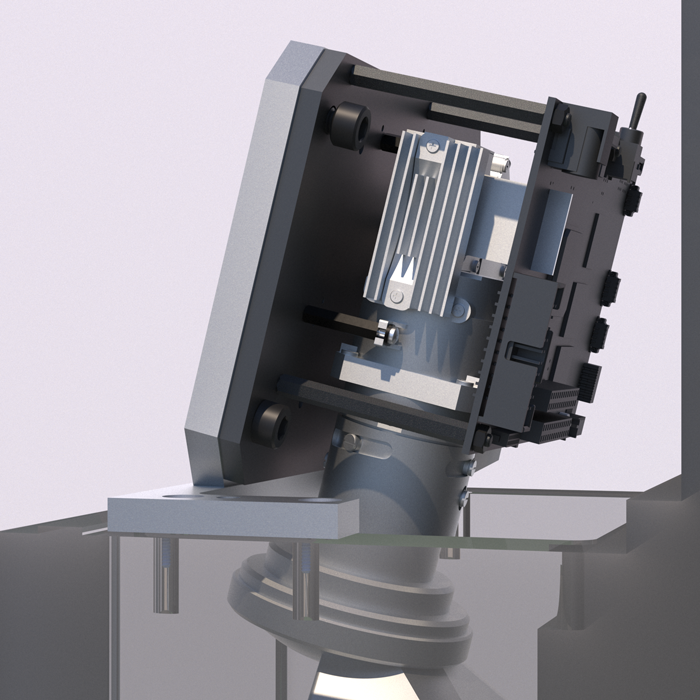

- 1× Projector Assembly
- 1× Microcontroller
- 1× Computer
- 1× Computer Accessory Set (monitor, keyboard, mouse, stand)
- 1-year Fringe Inspection™ Software Contract
Installation is fully reversible and can be completed in under 24 hours.
Specifications
Download the Large Format Fringe Inspection™ Hi-Rez Specification Sheet to explore detailed performance metrics, system requirements, and compatibility information.
Fringe Inspection™ Hi-Rez integrates with Fringe Operator™ and Fringe Qualification™ software to provide:
3D build heightmaps
2D layer analytics
Anomaly detection charts and logs
System requirements for Fringe Operator™ software:
- Windows 11
- NVIDIA RTX 2050 or better
Have questions about compatibility, installation, or performance?
Contact us with any questions.
Fringe Inspection Hardware is Compatible With
FAQs
Please read our FAQs page to find out more.
Is Fringe Inspection cloud-based?
No. Fringe Inspection is an on-premises software where all data is processed locally.
How is Fringe Inspection data saved?
Data from Fringe Inspection is saved however the customer would prefer. Fringe Inspection data can be a fully air-gapped solution or linked to a cloud storage system depending on the customer's requirements.
What is installation like for Fringe Inspection?
Installing Fringe Inspection typically takes 24 calendar hours for installation, calibration, validation, and training. Typically our technician will arrive on-site mid-day and leave the following afternoon. If special requirements are required, we can work around your schedule.
What sized anomalies can Fringe Inspection identify?
Fringe Inspection can identify any variation in the powder or melted surface that is greater than 3-times the pixel size. For a standard installation Fringe Inspection can typically identify anomalies greater than 300 microns.
