Fringe Inspection M2 Series 5 Kit
Measure:
Catch build anomalies in real time with precise, unit-based data.
Identify:
Inspect every layer of your Colibrium M2 Series 5 builds with unmatched accuracy, catching powder bed and printed layer anomalies as they occur.
Improve:
Install in under 24 hours – fully reversible, no permanent machine modifications, only improved visibility and control.
Log in to view pricing and add to cart.
Pairs well with
Fringe Inspection M2 Series 5 Kit
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product Details
Description

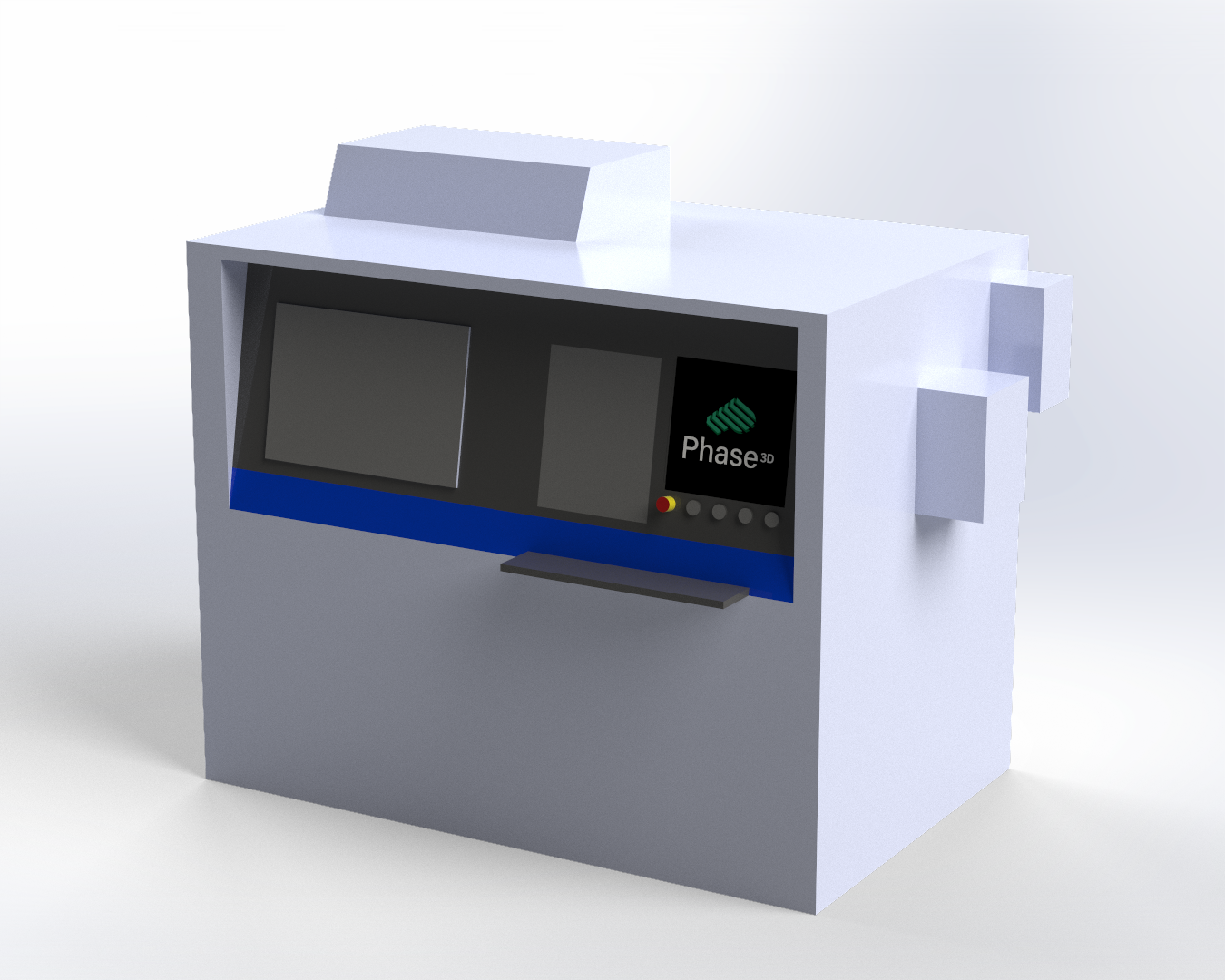

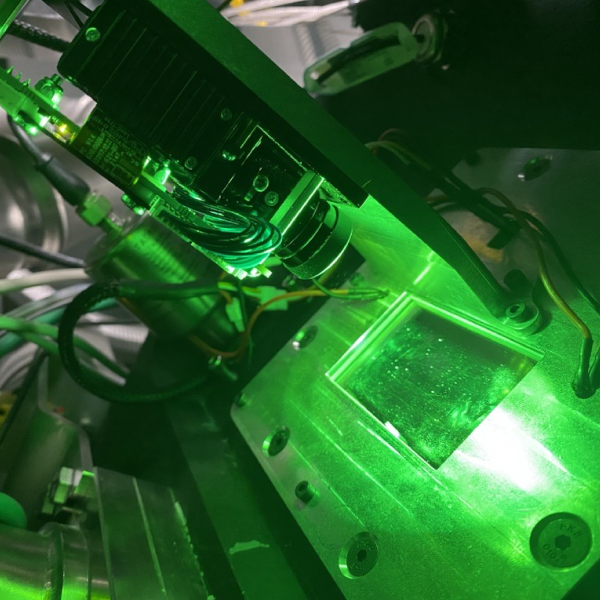

The Fringe Inspection™ M2 Series 5 Kit brings Phase3D’s structured light inspection technology to the GE Additive (Colibrium Additive) M2 Series 5 platform. Designed for production-ready additive manufacturing, this system delivers real-time, layer-by-layer surface heightmaps, giving manufacturers the ability to detect and quantify both powder bed and printed layer anomalies as they happen.
Fringe Inspection™ is the only in-situ, unit-based inspection system built for repeatability, calibratability, and rapid integration. The system operates externally, using existing machine ports, requiring no invasive modifications to your M2 Series 5.
The Fringe Inspection™ M2 Series 5 Kit includes:

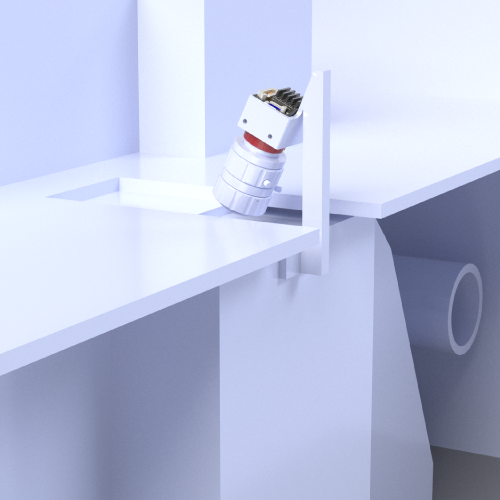

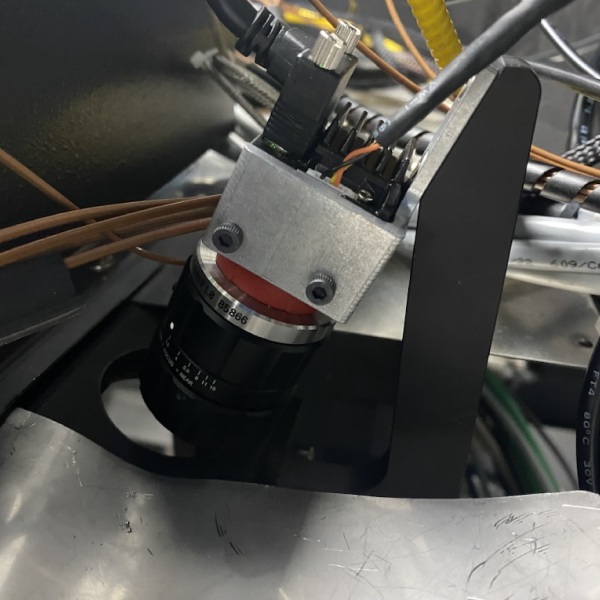

- 1× Camera Assembly

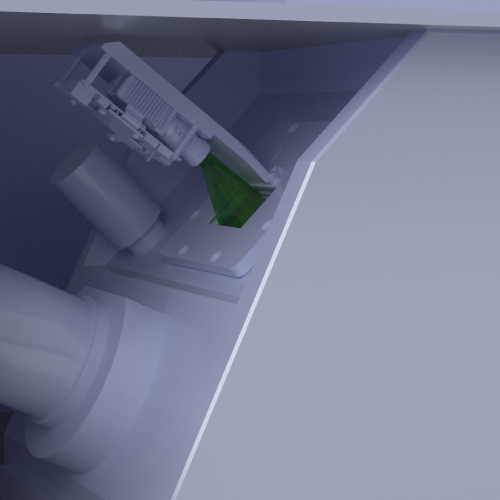

- 1× Projector Assembly
- 1× Microcontroller
- 1× Computer
- 1× Computer Accessory Set (monitor, keyboard, mouse, stand)
- 1-year Fringe Inspection™ Software Contract
Installation and calibration take less than 24 hours and are fully reversible, allowing your machine to be restored to its original configuration when needed.
Specifications
Download the Fringe Inspection™ M2 Series 5 Kit Specification Sheet to review performance details, system requirements, and compatibility information.
M2 Series 5 Kit Specification Sheet
Fringe Inspection™ integrates seamlessly with Fringe Operator™, Phase3D’s visualization and analysis software, unlocking:
- 3D build heightmaps
- 2D layer analytics
- Anomaly detection charts and logs
System requirements for Fringe Operator™ data review software:
- Windows 11
- NVIDIA GTX 650 or higher
Have questions about compatibility, installation, or performance?
Contact us with any questions.
Fringe Inspection Hardware is Compatible With
FAQs
Please read our FAQs page to find out more.
Is Fringe Inspection cloud-based?
No. Fringe Inspection is an on-premises software where all data is processed locally.
How is Fringe Inspection data saved?
Data from Fringe Inspection is saved however the customer would prefer. Fringe Inspection data can be a fully air-gapped solution or linked to a cloud storage system depending on the customer's requirements.
What is installation like for Fringe Inspection?
Installing Fringe Inspection typically takes 24 calendar hours for installation, calibration, validation, and training. Typically our technician will arrive on-site mid-day and leave the following afternoon. If special requirements are required, we can work around your schedule.
What sized anomalies can Fringe Inspection identify?
Fringe Inspection can identify any variation in the powder or melted surface that is greater than 3-times the pixel size. For a standard installation Fringe Inspection can typically identify anomalies greater than 300 microns.
